Skyjacker 20-25 Jeep Gladiator JT 2-6in. Front And Rear Lower Adjustable Control Arm Component Box

Engineered Control for Serious Gladiator Lift Applications

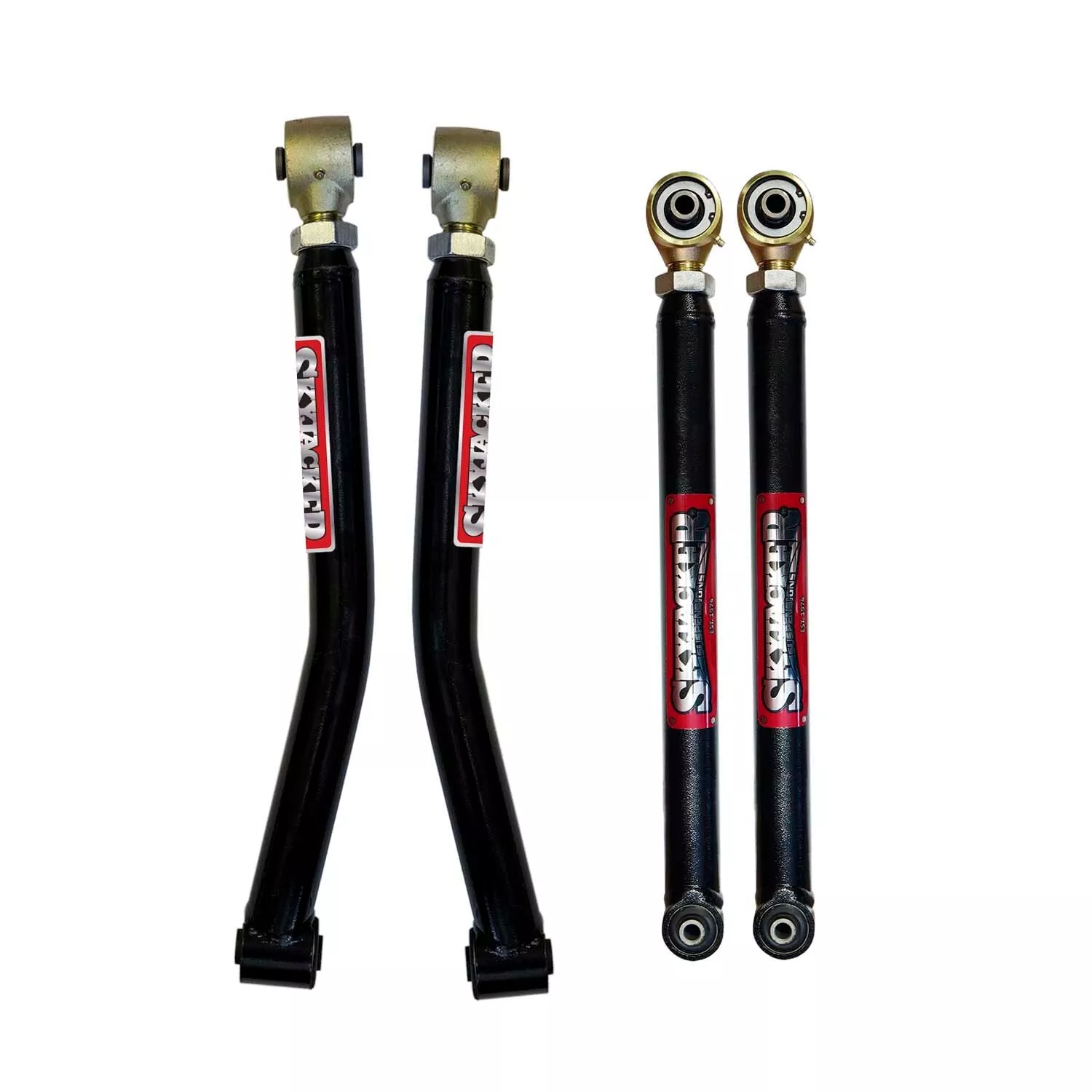

The Skyjacker GL36LLX component box delivers front and rear lower adjustable control arms built for 2020-2025 Jeep Gladiator JT owners running a 2 to 6 inch lift. Formed from 2 inch OD by 0.188 wall DOM tubing, the GL36LLX control arms maintain correct driveline phasing and axle alignment after a lift, something factory arms cannot do once ride height changes. The adjustability built into the GL36LLX allows a shop or DIY installer to dial in proper caster settings, restoring accurate steering geometry and even tire wear across the front and rear axles.

Each GL36LLX arm uses pressed in OEM style steel encased rubber bushings at the frame side for a controlled, quiet ride, while the axle mount incorporates forged 1-1/4 inch Johnny Joints. Those Johnny Joints provide more than 30 degrees of unrestricted flex in any direction, letting the Gladiator’s axle articulate fully on the trail without binding or premature wear. Installing the GL36LLX component box alongside a compatible Skyjacker lift system is a core step toward correcting alignment geometry on a lifted Gladiator.

Key Features

• Front and rear lower adjustable control arms in one component box
• 2 inch OD x 0.188 wall DOM tubing construction
• Forged 1-1/4 inch Johnny Joints at axle mounts
• Over 30 degrees of unrestricted flex movement
• OEM style steel encased rubber bushings at frame mounts
• Restores proper caster and driveline phasing after lift
• Designed specifically for 2 to 6 inch lifted Gladiator applications

Fitment

Specifications

What’s Included

• Front lower adjustable control arms, pair
• Rear lower adjustable control arms, pair
• Frame side steel encased rubber bushings
• Axle side forged Johnny Joints
• Mounting hardware

About Skyjacker

Skyjacker has engineered suspension lift systems and off road components since 1970, building a reputation on durability and precise fitment for trucks, Jeeps, and SUVs. The GL36LLX component box reflects that same commitment, giving Gladiator owners a control arm solution engineered to work in concert with a full Skyjacker lift package.

Related Parts

• Skyjacker Gladiator 3.5-6in Front Coilover Shocks
• Skyjacker Gladiator Rear Shock Absorber

FAQ

What is the GL36LLX?

The GL36LLX is a Skyjacker front and rear lower adjustable control arm component box designed for 2020-2025 Jeep Gladiator JT trucks running a 2 to 6 inch lift.

Does the GL36LLX fit all Gladiator trims?

Yes, the GL36LLX fits Sport, Rubicon, Mojave, and Overland trims from 2020 through 2025.

What lift range is the GL36LLX designed for?

The GL36LLX is intended for Gladiator applications with a 2 to 6 inch lift installed.

What type of joints does the GL36LLX use?

The GL36LLX uses forged 1-1/4 inch Johnny Joints at the axle mounts for over 30 degrees of flex.

Why do I need adjustable control arms after lifting my Gladiator?

Lifting a Gladiator changes suspension geometry, and the GL36LLX allows correction of caster angle and driveline phasing that a fixed length arm cannot provide.

Is professional installation required for the GL36LLX?

Professional installation and a post install alignment are strongly recommended for the GL36LLX to ensure proper geometry and safe operation.

What material is the GL36LLX built from?

The GL36LLX arms are formed from 2 inch OD by 0.188 wall DOM tubing for strength and durability on and off road.

Can the GL36LLX be used without a full lift kit?

The GL36LLX is designed to complement a Skyjacker lift system and is most effective when installed alongside a compatible 2 to 6 inch lift.

Install Instructions

1. Raise and safely support the Gladiator on jack stands at OEM specified lift points.
2. Remove factory front and rear lower control arms using appropriate sockets.
3. Install the GL36LLX front lower control arms at frame and axle mounts with supplied hardware.
4. Install the GL36LLX rear lower control arms at frame and axle mounts with supplied hardware.
5. Torque all fasteners to specification listed in the installation guide.
6. Cycle suspension through full travel to check for clearance issues.
7. Lower vehicle and have a qualified shop perform a full alignment.
