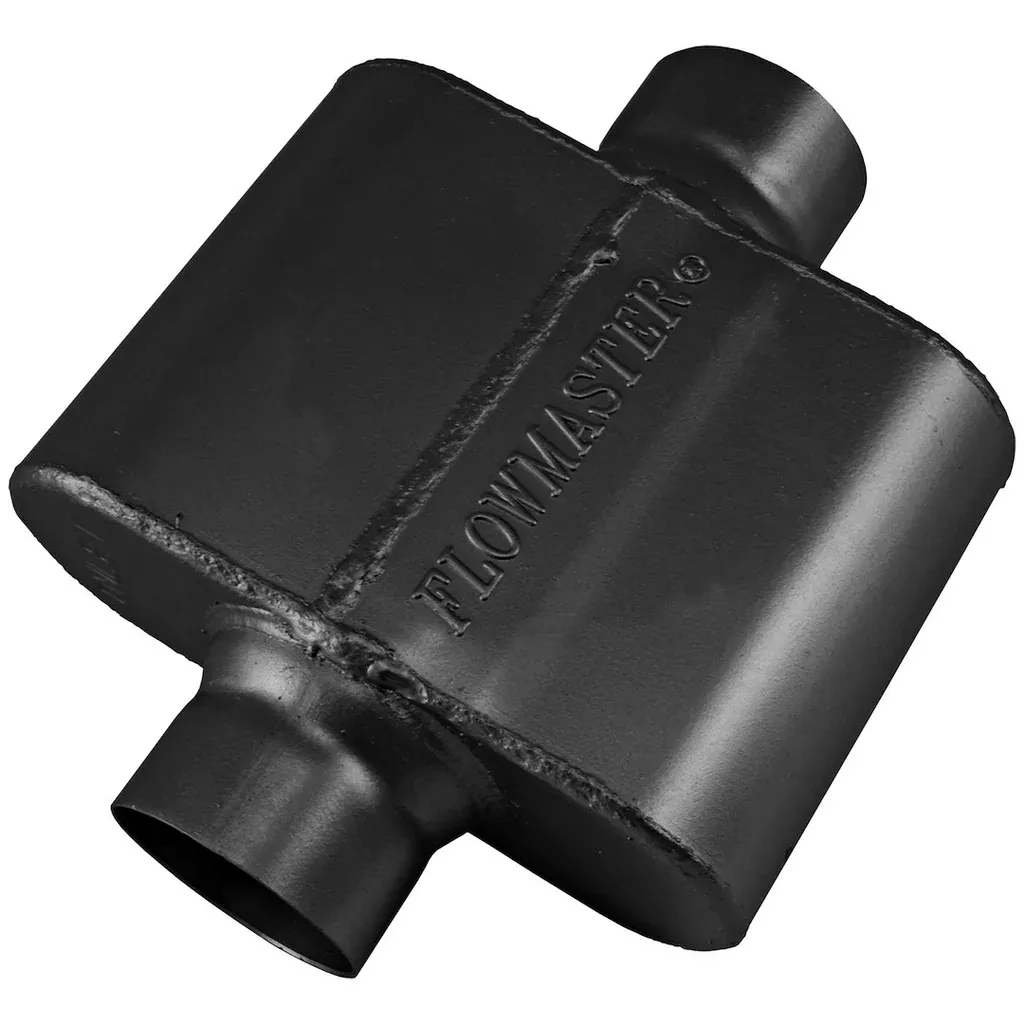

Flowmaster 10 Series Delta Force Muffler (MPN: 9430109)

High-performance race muffler designed for maximum exhaust efficiency.

The Flowmaster 10 Series Delta Force Muffler is engineered specifically for racing applications, utilizing advanced Delta Flow technology to enhance performance. This single chamber race muffler features a durable fully welded 16 gauge aluminized steel construction, ensuring longevity and reliability under extreme conditions. With a center inlet and outlet design, it provides a streamlined exhaust flow that contributes to improved engine efficiency.

Measuring 9-3/4 inches in width and 4 inches in height, this muffler is designed to fit a variety of exhaust systems, although modifications may be necessary for installation. The Flowmaster 10 Series is known for its minimal decibel reduction over open headers, making it suitable for environments where sound restrictions are not a concern. Its compact size, with a body length of 6-1/2 inches and an overall length of 14-3/4 inches, allows for versatile placement within the exhaust system.

This muffler does not include internal packing, which eliminates the risk of blowout and ensures consistent performance. The Flowmaster 10 Series Delta Force Muffler is a reliable choice for racers seeking to maximize their vehicle’s exhaust efficiency while maintaining a robust sound profile.

Features

• Durable Fully Welded 16 Gauge Aluminized Steel: Single Chamber Race Muffler
• Race Proven Delta Flow Technology
• Minimal Decibel Reduction Over Open Headers
• No Internal Packing To Blowout

Specifications

• Manufacturer: Flowmaster
• Manufacturer Part Number: 9430109
• Shape: Oval
• Inlet Position: Center Single
• Inlet Diameter (IN): 3 Inch
• Outlet Position: Center Single
• Outlet Diameter (IN): 3 Inch
• Universality: Semi-Universal
• Estimated Install Time (Hours): 1
• Case Diameter (IN): 9-3/4 Inch X 4 Inch
• Case Length (IN): 6-1/2 Inch
• Overall Length (IN): 14-3/4 Inch
• Color/ Finish: Gray Painted
• Material: Steel
• Wall Type: Single Wall
• Includes Tip: Without Tip
• Tip Length (IN): Without Tip
• Tip Diameter (IN): Without Tip
• Tip Finish: Without Tip
• Tip Material: Without Tip
