Innovative design for enhanced safety and performance in winching applications.

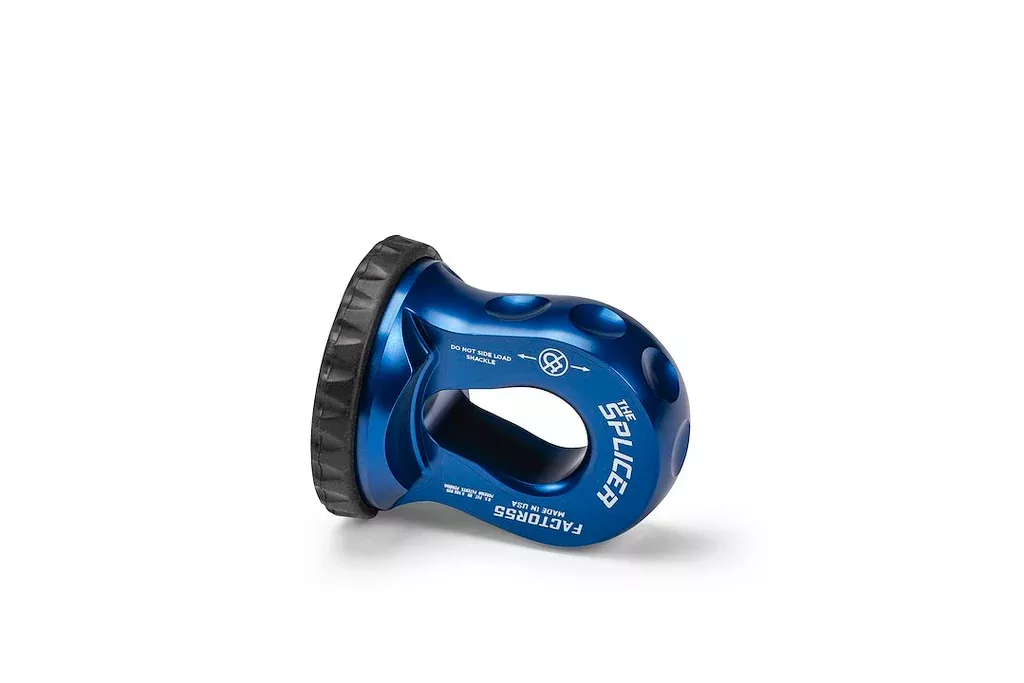

The Factor 55 Winch Cable Shackle Mount is a cutting-edge solution designed to replace conventional winch hooks with a safer and more secure shackle or D-ring. This product features the industry’s first splice-on synthetic rope thimble, which offers both impact and UV protection, ensuring durability and longevity in various conditions. The unique machined rope passage provides a robust outer barrier that protects against rope impact and abrasion, making it suitable for demanding winching tasks.
Constructed from lightweight, precision CNC machined 6000 series military-grade aluminum, this shackle mount is engineered for strength and reliability. It is compatible with synthetic winch ropes up to 1/2 inch in diameter and can accommodate shackles with a diameter of up to 1 inch. The integrated EPDM rubber pads enhance fairlead protection, contributing to safer recoveries through a closed system winching approach.
With a load capacity of 16,000 pounds, the Factor 55 Winch Cable Shackle Mount is designed for heavy-duty applications while maintaining a focus on safety and performance. Made in the USA, this product exemplifies quality and innovation in winching technology.
Features
- Replace Conventional Winch Hooks With A Safer More Secure Shackle Or D-Ring
- Industry’s First Splice On Winch Rope Thimble With Impact And UV Protection
- Unique Machined Rope Path Provides Complete Rope Protection
- Safer Recoveries Through Closed System Winching
- Lightweight – Precision CNC Machined 6000 Series Military Grade Aluminum
- Integrated EPDM Rubber Pads For Fairlead Protection
- For Synthetic Winch Rope Only
- Made In USA
Specifications
- Manufacturer: Factor 55
- Manufacturer Part Number: 00352-02
- Shackle Type: 1 Inch Diameter Shackle
- Cable Type: Synthetic Winch Rope
- Load Capacity (LB): 16000 Pound
- Finish: Powder Coated
- Color: Blue
- Material: Aluminum
- With Guard: No
Technical Documents
- F55_Truck_SUV_Jeep_Rev2.pdf
