Compact LED warning light with multiple flash patterns and mounting options.

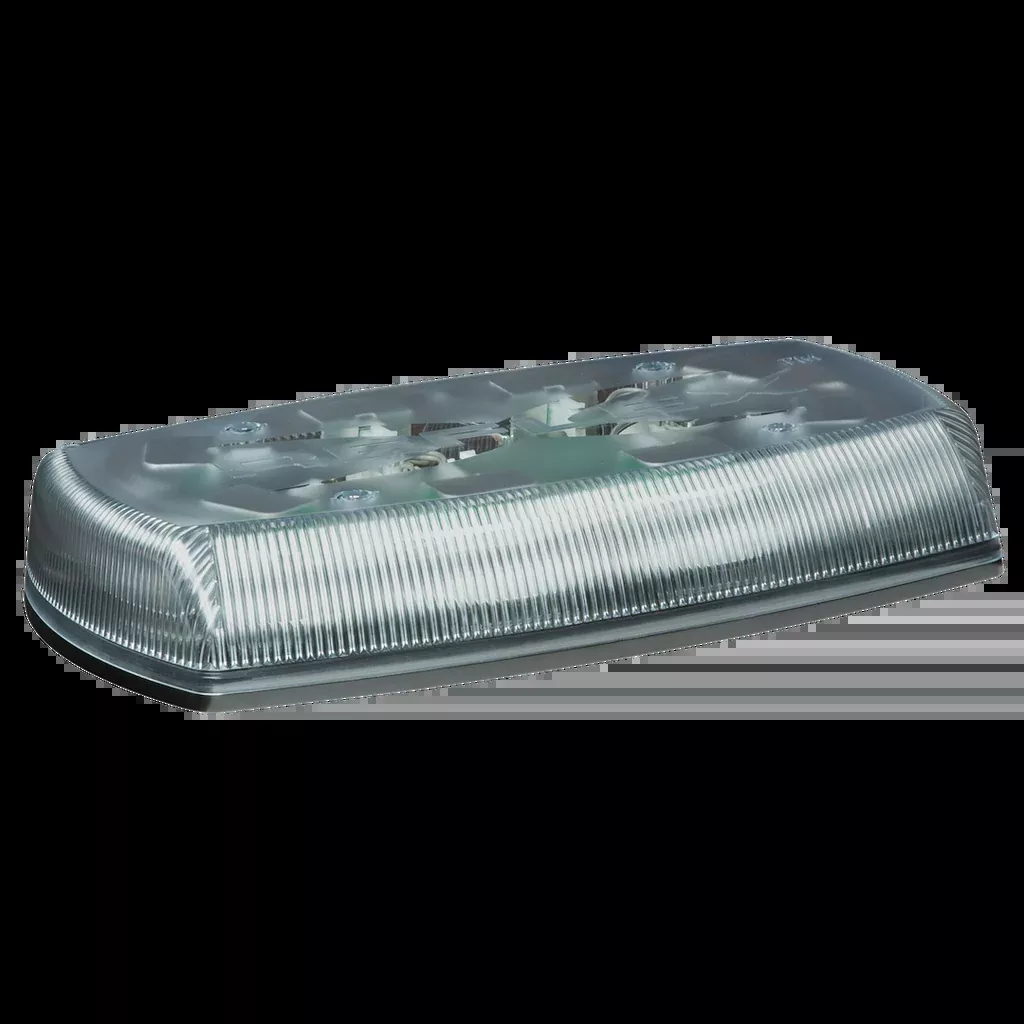

The Ecco Electronic Mini Bar Warning Light is designed to provide a powerful warning solution in a compact form factor. Measuring 15 inches in length, 9 inches in width, and 2.5 inches in height, this mini bar features eight LED reflector modules, each containing three high-intensity LEDs, ensuring maximum light output for visibility in various conditions. It operates on a voltage range of 12 to 24 volts DC, making it versatile for different applications.
This warning light offers a selection of 18 flash patterns, which can be easily controlled through a trigger wire for permanent mount models or via a cigarette plug switch for magnetic models. The synchronization capability allows multiple lights to operate either alternately or simultaneously, enhancing the effectiveness of the warning system. Built to withstand a temperature range from -22 degrees Fahrenheit to +122 degrees Fahrenheit, this mini bar is suitable for diverse environments.
The clear lens design ensures optimal light transmission, while the permanent mount option provides a secure installation. The Ecco Electronic Mini Bar Warning Light is an essential tool for enhancing safety and visibility in emergency situations or work zones.
Features
- Eight LED Reflector Modules, Each Comprising Three LEDs Provide High Intensity Light Output
- Choice Of 18 Flash Patterns
- Synchronization Capable
- Cigarette Plug With On And Off And Flash Pattern Selection Switch
- Temperature Range: -22 Degree Fahrenheit To +122 Degree Fahrenheit (-30 Degree Celsius To +50 Degree Celsius)
Specifications
- Manufacturer: Ecco Electronic
- Manufacturer Part Number: 5585CAB
- Shape: Rectangular
- Length (IN): 15 Inch
- Width (IN): 9 Inch
- Height (IN): 2-1/2 Inch
- Diameter (IN): Not Applicable
- Style: Mini Bar
- Type: LED
- Mount Type: Permanent Mount
- Lens Color: Clear
- Light Pattern: 18 Flash Pattern
- Power Supply: 12 To 24 Volt
- With Cigarette Lighter Plug: No
- Includes Gaskets: No
Technical Documents
- 920-0149-00.pdf
- 5585_ECCO_8.5X11.pdf
- 5585CXX.pdf
