High performance cooling solution for Jeep Wrangler models.

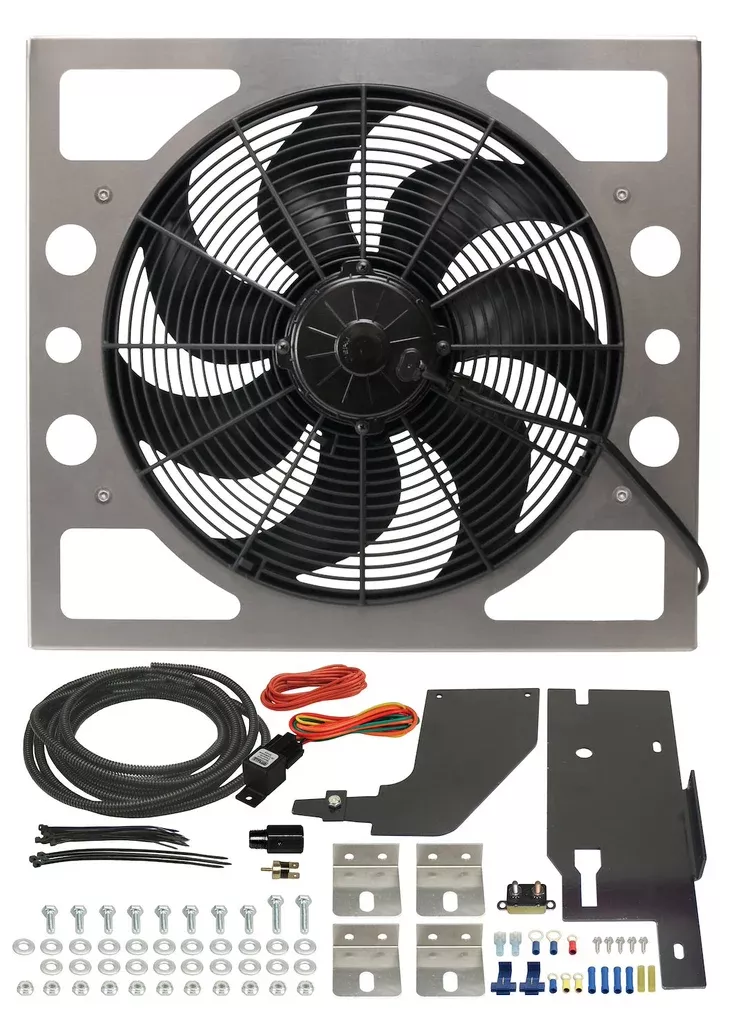

The Derale Electric Cooling Fan Assembly is designed to provide efficient cooling for Jeep Wrangler YJ and TJ models. This assembly features a 17 inch diameter fan with a powerful 265 Watt motor, capable of delivering an impressive airflow of 2400 cubic feet per minute. The fan operates at a maximum speed of 2500 RPM, ensuring optimal performance under various conditions. The unit includes a durable powder coated steel shroud that enhances its longevity and effectiveness.
This complete kit comes with all necessary components for installation, including brackets, fittings, and a relay harness, eliminating the need for additional purchases. The thermostatic control allows for automatic operation based on temperature, while the air conditioning override circuit ensures reliable performance during high-demand situations. With easy-to-follow instructions, this assembly is designed for a straightforward do-it-yourself installation, making it accessible for users with basic mechanical skills.
The Derale Electric Cooling Fan Assembly replaces the traditional fan clutch and shroud, mounting directly to factory locations for a seamless fit. Its 11-blade design, made from high-quality plastic, contributes to its efficient airflow and cooling capabilities. This product is an essential upgrade for maintaining optimal engine temperatures and enhancing the overall performance of your Jeep.
Features
- Replaces Fan Clutch, Fan Shroud And New Shroud Mounts To Factory Locations
- High Output 265 Watt 2 Speed Motor
- Thermostatic Control Included. Radiator Reservoir Remount Brackets Included
- Powder Coated Metal Shroud
- Air Conditioning Override Circuit Included
- Complete Kit Includes Everything You Need For A Do It Yourself Installation
- Easy To Follow Step By Step Instructions
Specifications
- Manufacturer: Derale
- Manufacturer Part Number: 20161
- Condition: New
- Type: Electric
- Diameter: 17 Inch
- Height: 18 Inch
- Width: 19-1/2 Inch
- Depth: 3-3/4 Inch
- Maximum CFM: 2400 Cubic Feet Per Minute
- Maximum RPM: 2500 RPM
- Rotation Direction: Puller
- Fuse Rating: 50 Amp
- Controller Type: Thermostat
- Amperage Draw: 23.5 Amp
- Number Of Blades: 11
- Blade Color: Black
- Blade Material: Plastic
- Shroud Material: Steel
Compatibility / Fit
- 1997-2006 Jeep Wrangler TJ
- 1987-1995 Jeep Wrangler YJ
Technical Documents
- 20161.pdf
