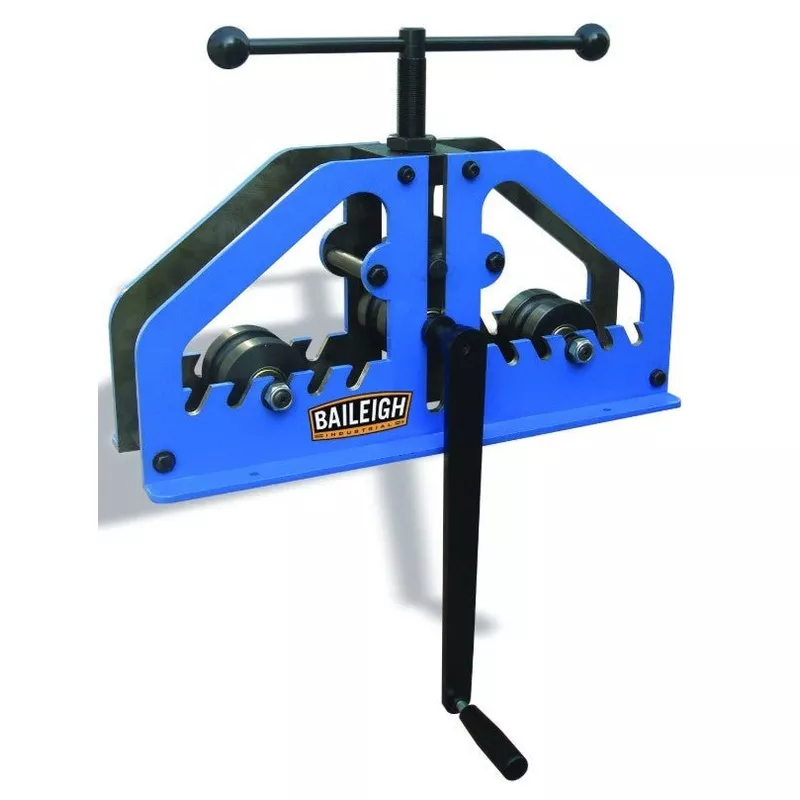

Baileigh Industrial R-M7 Radius Bender
Need to bend tube and pipe to large radii? Then Baileigh Industrials R-M7 radius bender is for you. Although not for rolling complete circles, the R-M7 does, make quick work of large radius bends. With many different tooling options, the R-M7 is just as versatile as all of the other Baileigh Industrial roll benders. The R-M7 radius bender is built using the highest quality materials for years of use. The R-M7s small size makes it highly portable and versatile for even the smallest shops. All turning shafts on the R-M7 roll bender turn on precision ball bearings, for the smoothest operation possible. The portable R-M7 is built from quality steel (unlike most competing roll benders in this price range) and can bend tube and pipe to large radii.
Features:
- Bends 1.5 pipe to a minimum radius of 20 and 2 round tube to a minimum radius of 60.
- Manual crank makes quick work of large radius bends*.
- Shafts turn on precision ball bearings for the smoothest possible operation.
- Many different tooling options, available from Baileigh, enable the machine to tackle a wide range of projects
- Takes up little space and will easily fit into even the smallest shops.
- Includes a set of 1-1/2″ OD tube dies.
- Baileigh covers this tubing roller with a 1-year parts warranty and lifetime technical support by phone.
Specifications:
- Item Number | R-M7
- Roll Adjustment | Manual
- Pipe Capacity Size | 1.5″ / Min. Radius: 20″
- Round Tube Capacity Size | 2″ / Min. Radius: 60″
- Shaft Center Distance | Adj. (lower rolls)
- Rectangle Capacity Size | 1 x 2″ / Min. Radius.: 10″
- Pinch | Single
- Capacity Flat Bar Size | 1.25″ / Min. Radius.: 10″
- Power | Manual
- Shipping Weight | 85 lbs.
- Material Type | All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength Mild Steel.
- **Optional Tooling | Some applications may require optional tooling (Sold Separately)
Optional Tooling (Sold Separately):
- PIPE TOOLING
- 1007463 | 1/4″ Round Pipe (0.54″OD) Rolls for R-M7
- 1007464 | 3/8″ Round Pipe (0.675″OD) Rolls for R-M7
- 1007465 | 1/2″ Round Pipe (0.84″OD) Rolls for R-M7
- 1007466 | 3/4″ Round Pipe (1.05″OD) Rolls for R-M7
- 1007467 | 1″ Round Pipe (1.315″OD) Rolls for R-M7
- 1007468 | 1-1/4″ Round Pipe (1.66″ OD) Rolls for R-M7
- 1007469 | 1-1/2″ Round Pipe (1.90″OD) Rolls for R-M7
- TUBE TOOLING
- 1007594 | 1/2″ Round Tube Rolls for R-M7
- 1007595 | 5/8″ Round Tube Rolls for R-M7
- 1007596 | 3/4″ Round Tube Rolls for R-M7
- 1007597 | 7/8″ Round Tube Rolls for R-M7
- 1007598 | 1″ Round Tube Rolls for R-M7
- 1007599 | 1-1/8″ Round Tube Rolls for R-M7
- 1007600 | 1-1/4″ Round Tube Rolls for R-M7
- 1007601 | 1-3/8″ Round Tube Rolls for R-M7
- 1007602 | 1-1/2″ Round Tube Rolls for R-M7
- 1007603 | 1-5/8″ Round Tube Rolls for R-M7
- 1007604 | 1-3/4″ Round Tube Rolls for R-M7
- 1007605 | 2″ Round Tube Rolls for R-M7
- SQUARE TOOLING
- 1007685 | 1/4″ Square Tube Rolls for R-M7
- 1007678 | 1/2″ Square Tube Rolls for R-M7
- 1007679 | 3/4″ Square Tube Rolls for R-M7
- 1007680 | 1″ Square Tube Rolls for R-M7
- 1007681 | 1-1/4″ Square Tube Rolls for R-M7
- 1007682 | 1-1/2″ Square Tube Rolls for R-M7
- 1007683 | 1-3/4″ Square Tube Rolls for R-M7
- 1007684 | 2″ Square Tube Rolls for R-M7
* specifications subject to change without notice.
