SKU: 30-5601F
AEM CD-5L Carbon Logging Flush Digital Dash Display
Take full control of your vehicles data with the AEM CD-5L Carbon Logging Flush Digital Dash Display. This premium 5-inch full-color digital dash combines a sleek, flush-mount carbon fiber design with powerful onboard data logging, making it the perfect choice for track cars, race vehicles, and high-performance street builds. With 200MB of internal logging capability (up to 1,000Hz per channel), support for both AEMnet and third-party CAN bus systems, and seven programmable LED shift lights, the CD-5L delivers professional-grade performance in a compact, modern package.
Key Features
- 5″ Full-Color Daylight Readable Display800×480 resolution with 1000cd/m brightness and anti-glare filter
- Built-in Data Logging200MB internal memory with up to 1,000Hz per channel sampling rate
- Advanced CAN Bus SupportWorks with AEMnet devices and most aftermarket/non-AEM CAN systems
- Seven Programmable LED Shift LightsUser-defined RPM range with dimmable brightness
- Flush-Mount Carbon Fiber DesignSleek, low-profile enclosure ideal for tight dash spaces
- Customizable Pages & WarningsCreate up to 7 programmable pages with custom graphics and alarms
- IP65 Water ResistanceBuilt tough for competition and harsh environments
- Remote Button SupportRequires separate button kit (PN 30-3610) for page navigation
Specifications
| Detail | Value |
|---|---|
| Brand | AEM |
| Type | CD-5L Carbon Logging Flush Digital Dash |
| Screen Size | 5″ Diagonal (800×480 Resolution) |
| Logging Capacity | 200MB Internal (Up to 1,000Hz/Channel) |
| Enclosure Material | Carbon Fiber Composite |
| Water Resistance | IP65 |
| LED Shift Lights | 7 Programmable & Dimmable |
| CAN Bus Support | AEMnet + Third-Party CAN Compatible |
| GPS | Not Included (Optional via Vehicle Dynamics Module) |
| Country of Origin | United States |
| Warranty | Manufacturers 1-Year Warranty |

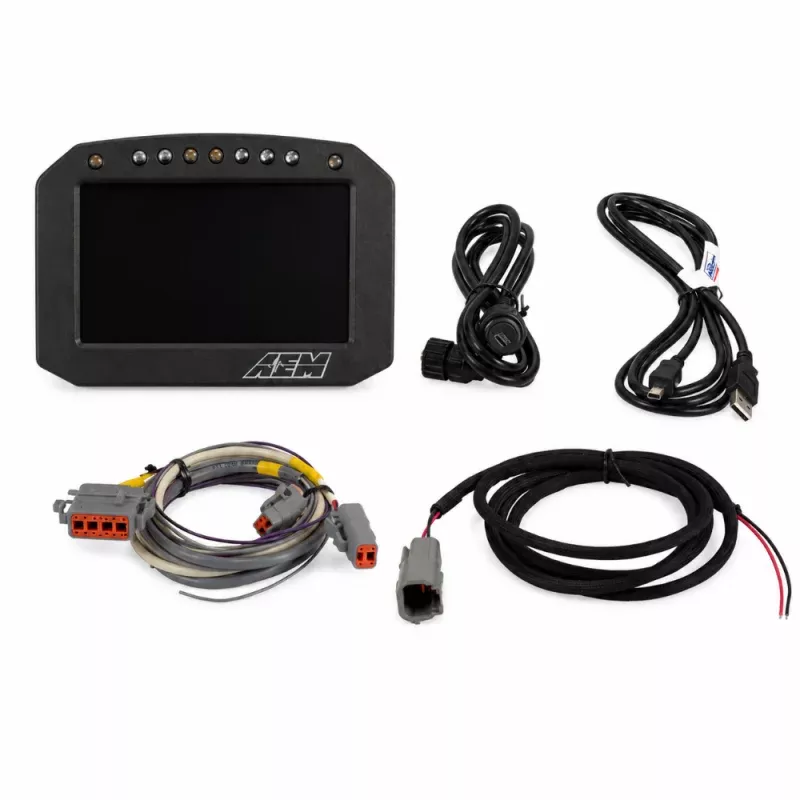

Whats Included
- AEM CD-5L Carbon Logging Flush Digital Dash Display
- Wiring Harness
- Mounting Hardware
- Installation Instructions
Product Notes
- Remote Button Kit (PN 30-3610) is required for page navigation and is sold separately
- Professional installation is recommended
- Compatible with carbureted engines and pre-2008 ECUs using AEM CAN Sensor Modules
- Layout files are interchangeable with other CD-5 Carbon dashes
This Part Fits
| Application | Notes |
|---|---|
| Universal / Custom Builds | Works with most performance and race vehicles |
| Modern CAN-Based Vehicles | Plug & Play with 2008+ factory ECUs (OBDII adapter sold separately) |
| Carbureted & Pre-2008 Vehicles | Compatible using AEM 22-Channel or 6-Channel CAN Sensor Modules |
Why Choose AEM?
- Industry leader in performance electronics and data acquisition systems
- Proven reliability in professional motorsport and high-performance applications
- Advanced features including high-speed logging and customizable displays
- Backed by strong technical support and a 1-year warranty
Frequently Asked Questions
- Q: Does this dash include data logging?
- A: Yes. The CD-5L model includes 200MB of onboard logging with up to 1,000Hz per channel.
- Q: Do I need the remote button kit?
- A: Yes. The flush-mount version does not have onboard buttons, so the Remote Button Kit (PN 30-3610) is required.
- Q: Can this work with my factory ECU?
- A: Yes. It supports most 2008+ factory ECUs via the optional OBDII CAN adapter cable.
- Q: Is this a flush-mount dash?
- A: Yes. The CD-5L is designed for flush or in-dash installation with a low-profile carbon fiber enclosure.
